560 Milliohm Meter

560 checks Hybrid and EV stator windings for inconsistent or out of range resistance which leads to drivability problems. Using a milliohm meter is a critical diagnostic procedure for ensuring the integrity, efficiency, and reliability of the electric motor's winding. In three phase stators, all phases should exhibit nearly identical resistance values. This is one of the higher failure rates in electric motors and 560 can help you diagnose it.

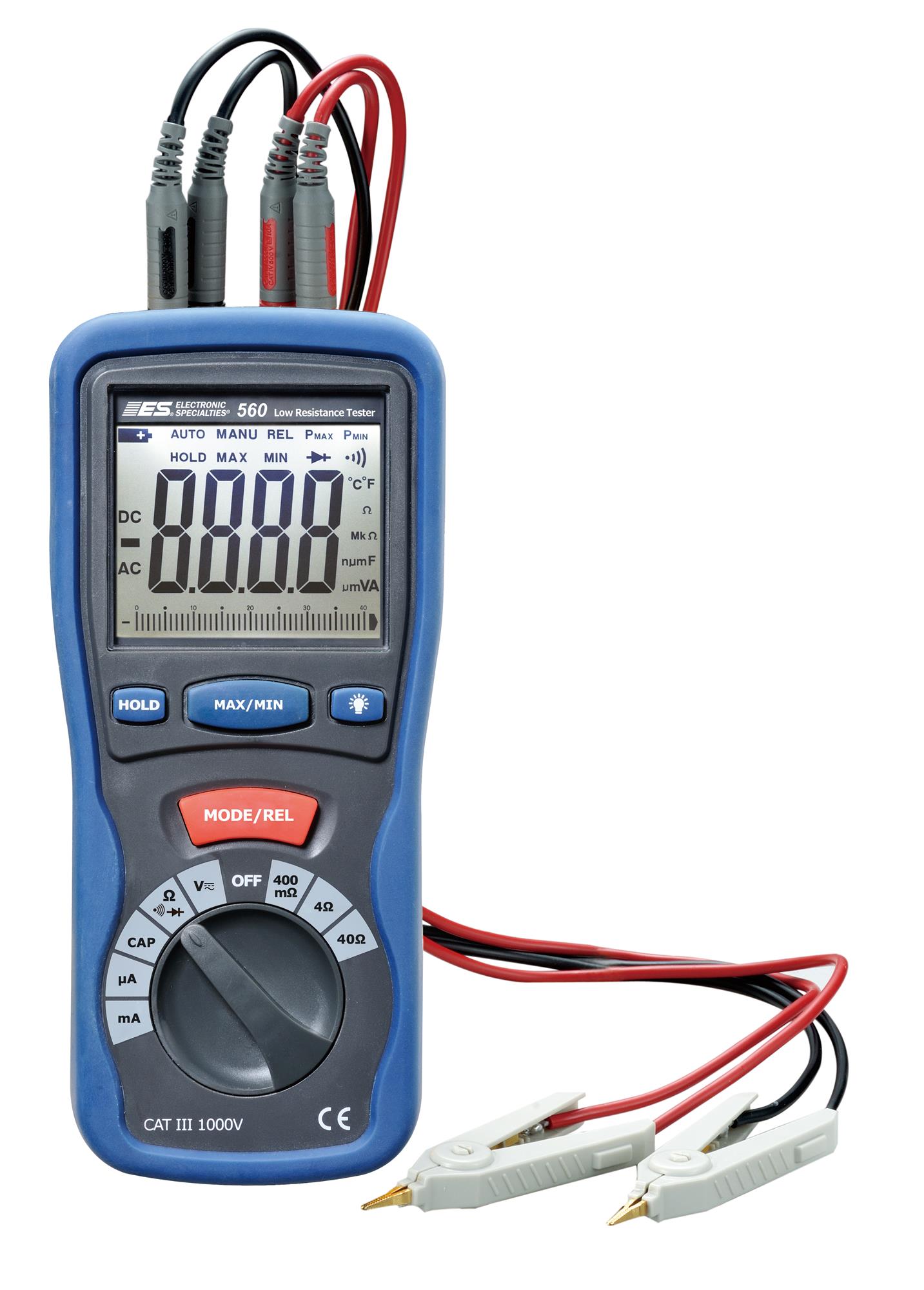

560 reads very low ohms accurately, using the supplied Kelvin test leads. Low Ohm resolution is 0.1 milliohm, or .00001 Ohm. Unit is also full CATIII DVOM with Volts, Ohms, Capacitance, and Milliamps capabilities with Min/Max.  Also measures Diodes and has Continuity beep.



Features:

• Meets IEC10101, CATIIII 1000V
• Large Display with Whit LED Backlighting
• Min/Max Capture of High/Low Readings
• Over Range indication



Includes:

• (6) AA Batteries
• Kelvin Test Leads
• Standard Test Leads
• Blow Mold Case



Specifications:                    Range:               Resolution:

Low Resistance                  0-40 Ohms           0.1 Milliohms

Resistance                       0-40 MegOhms       0.1 Ohms

Voltage DC                          0-1000V               0.1mV

Voltage AC                           0-750V                0.1mV

AC/DC Current                    0-400mA                0.1uA

Capacitance                         0-40mF                 1pF

Continuity Test           Audible Beep ≤40 Ohm

Size (H x W x D)          200mm x 92mm x 50mm

Weight                          700g (with batteries)





Watch:  ES Milliohm Tester
